Products / Explosion Proof Heads / 1010PWE

1010PWE
view-icon

view
send-icon

send
download-icon

download

Aluminum explosion proof Thermocouple head,Epoxy Coated Blue provided with FM/CSA
certification, NEMA 4X IP66/68 rating. The connection head accommodates an elliptical block or
transmitter 2″ (50mm) in diameter

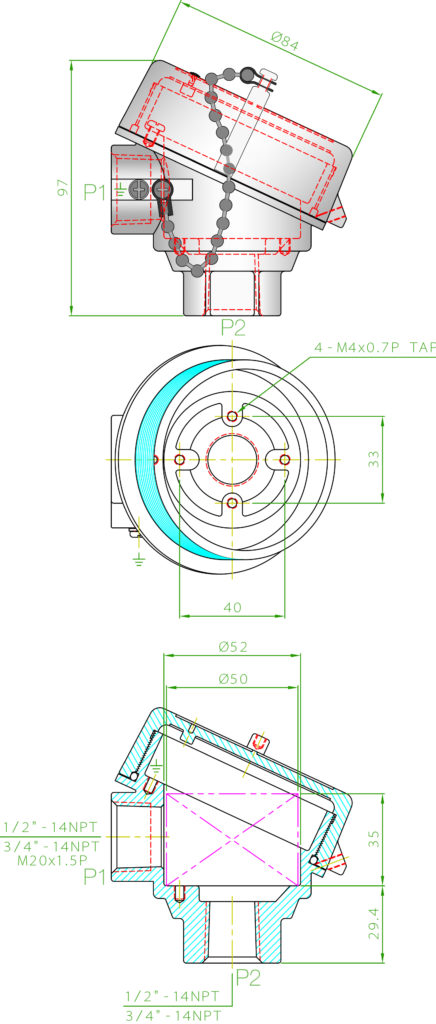

1016-MUL-CTLG Pushna



  • EXPLOSION-PROOF CERTIFIED
  • NEMA 4X AND IP66/68 CERTIFIED
  • WIDE SELECTION OF CONDUIT SIZES



  • Material of Construction: Die-Cast Aluminum or * Copper free Aluminum
  • Certification: FM / CSA
  • Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5
  • Surface Finishing: Epoxy Blue (custom color*)
  • “O” Ring: Buna “N”
  • Weight: 0.5 KG (1.1 LBS)
  • Accessories: Terminal Block (Ceramic / Bakelite)



FM Approved Class I Div I Groups B,C,D : Ta= -50°C to 80°C Type 4X IP66/68
Class ll / lll, Div 1 Groups E.F,G.Ta = -50°C to 80°C Type 4X IP66/68
Class I zone 1,IIB+H2Ta= -50°C to 80°C Type 4X IP66/68
Zone 21, Group IIIC Ta= -50°C to 80°C Type 4X IP66/68
CSA Approved Class I Div I Groups B,C,D : – 50°C to 80°C Type 4X IP66/68
Class II, Div I GroupS E,F,G Class III -50°C to 80°C Type 4X IP66/68



MODEL

T1 Tread                    T2 Tread

 DESCRIPTION
1010PWE-01 3/4″ NTP            x              1/2″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-02 1/2″ NPT            x               1/2″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-03 3/4″ NTP            x               3/4″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-04* 1/2″ NPT            x               3/4″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-05* 3/4″ NTP            x              M20 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-06* 1/2″ NPT            x              M20 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-07 3/4″ NTP            x              M24 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-08 1/2″ NPT            x              M24 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-11 M20 X1.5           x              1/2″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-12* M20 X1.5           x              1/2″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-13* M20 X1.5           x               M20 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-14* M20 X1.5           x              M24 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-15* M24 X1.5           x              3/4″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-16* M24 X1.5           x              1/2″ NPT Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-17* M24 X1.5           x            M20 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68
1010PWE-18* M24 X1.5           x             M24 X1.5 Aluminum Explosion Proof Thermocouple head FM/CSA NEMA 4X IP66/68

*THESE PRODUCTS UPON REQUEST WITH EXTRA LEAD TIME
